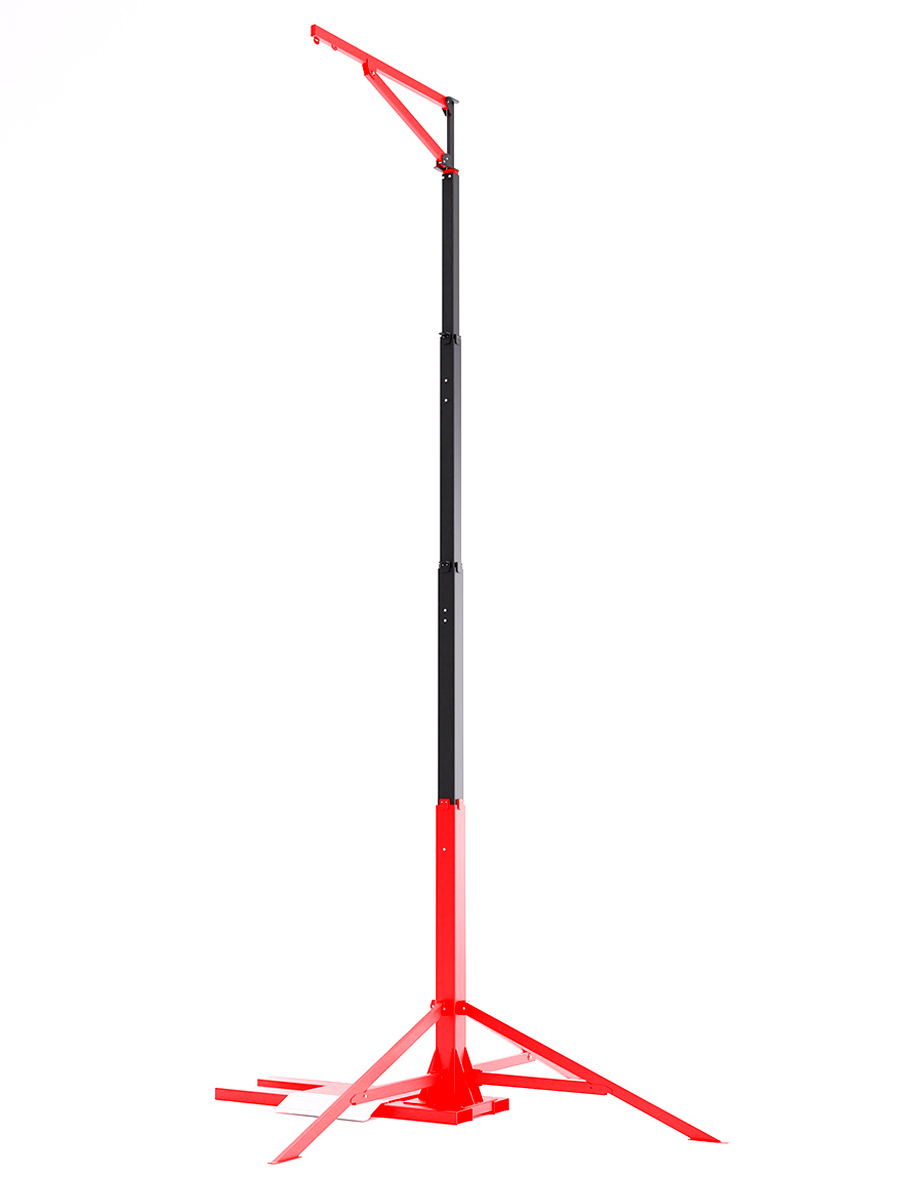

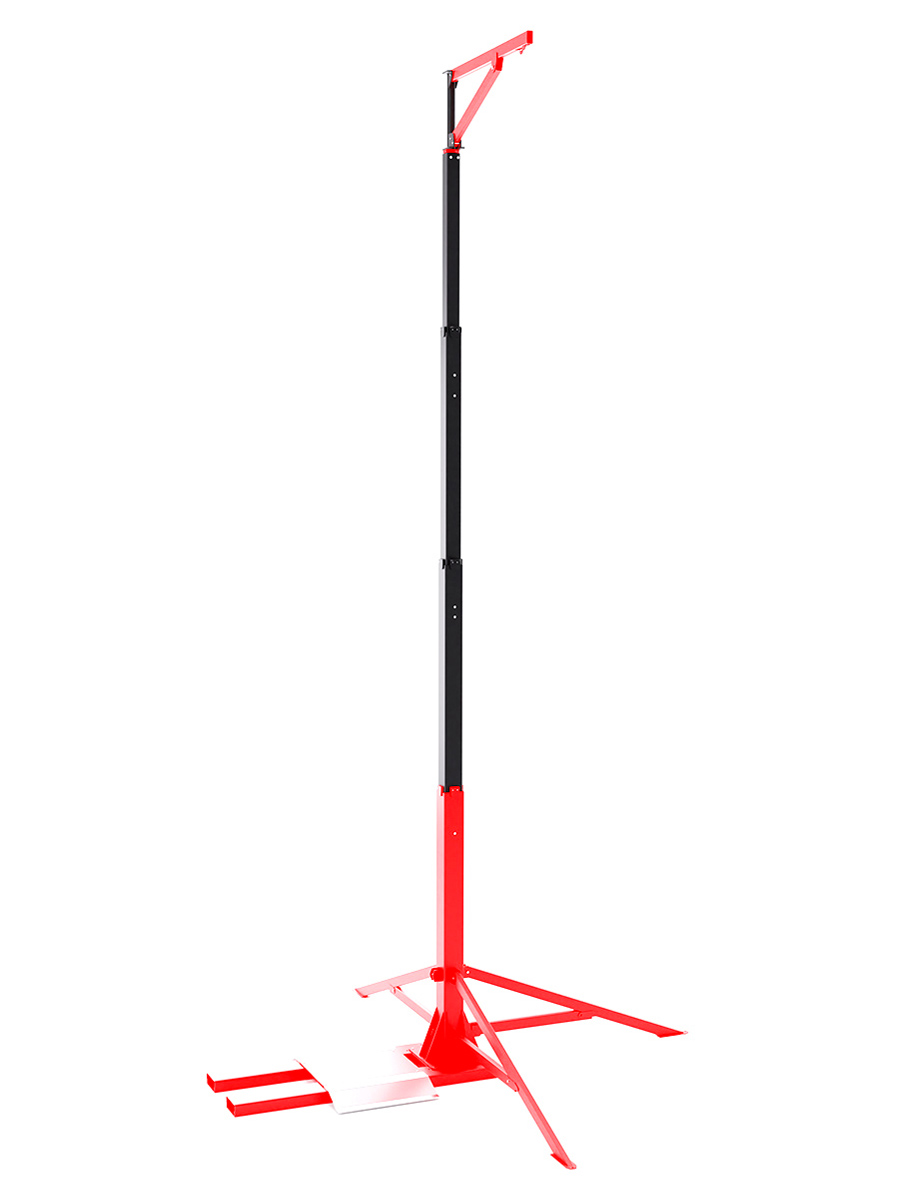

MIRACLE 360 Console Anchor (3 Feet, 1 Ramp Supported) (2 Persons)

MIRACLE 360

Cantilever Anchor (3 Feet, 1 Ramp Supported) (2 Persons)

MIRACLE 360 Cantilever Anchor has 3 legs and 1 ramp support, it has been developed for vehicle mounted working at height activities in narrow or parking lot areas. MIRACLE 360 working height can be adjusted between 5-7 meters, it has a 360 degree working area and this can be restricted when desired. MIRACLE 360 can be used by 2 people at the same time. It has 3 Foot, 1 Ramp support.

CHEST FALL ARREST ICON-ARGA SAFETYBACK FALL ARREST ICON-ARGA SAFETY

– The MIRACLE 360 Cantilever Anchor has 3 legs and 1 ramp support and has been developed for vehicle-mounted work at height activities in narrow or unpredictable parking areas.

360 degree rotatable arm feature allows it to be used in two vehicles parked side by side. Arm rotation angle can be adjusted according to the parking area.

– It has a telescopic adjustable body and can be adjusted up to 7 meters in height.

Anchor arm length is 1.5 meters.

– It has independent anchorage points suitable for use by 2 (two) users at the same time.

– It has 3 legs and 1 ramp support for use in narrow spaces.

– It can be transported by forklift and is easy to install.

Profile surface is coated with sandblasting + cataphoresis + powder coating, suitable for outdoor conditions.

Order Information

Sipariş Kodu

Product Name

Foot

Standart

Ağırlık

Product Name

Product Description

Foot Support

Ramp Support

EN

795

CEN/TS 16415

EN

360

(Kg/

Quantity)

MC3A1R10

MIRACLE 360

Adjustable Cantilever Anchor (2 Persons) (3 Feet, 1 Ramp Supported)

3

1

Provide Information in Order

…….. kg

MIRACLE 360 Cantilever Anchor (3 Feet, 1 Ramp Supported) – User Manual : Click to Download.

MIRACLE 360 Cantilever Anchor (3 Feet, 1 Ramp Supported) – Technical Data Sheet : Click to Download.

MIRACLE 360 Cantilever Anchor (3 Feet, 1 Ramp Supported) – CE Declaration of Conformity : Click to Download.
