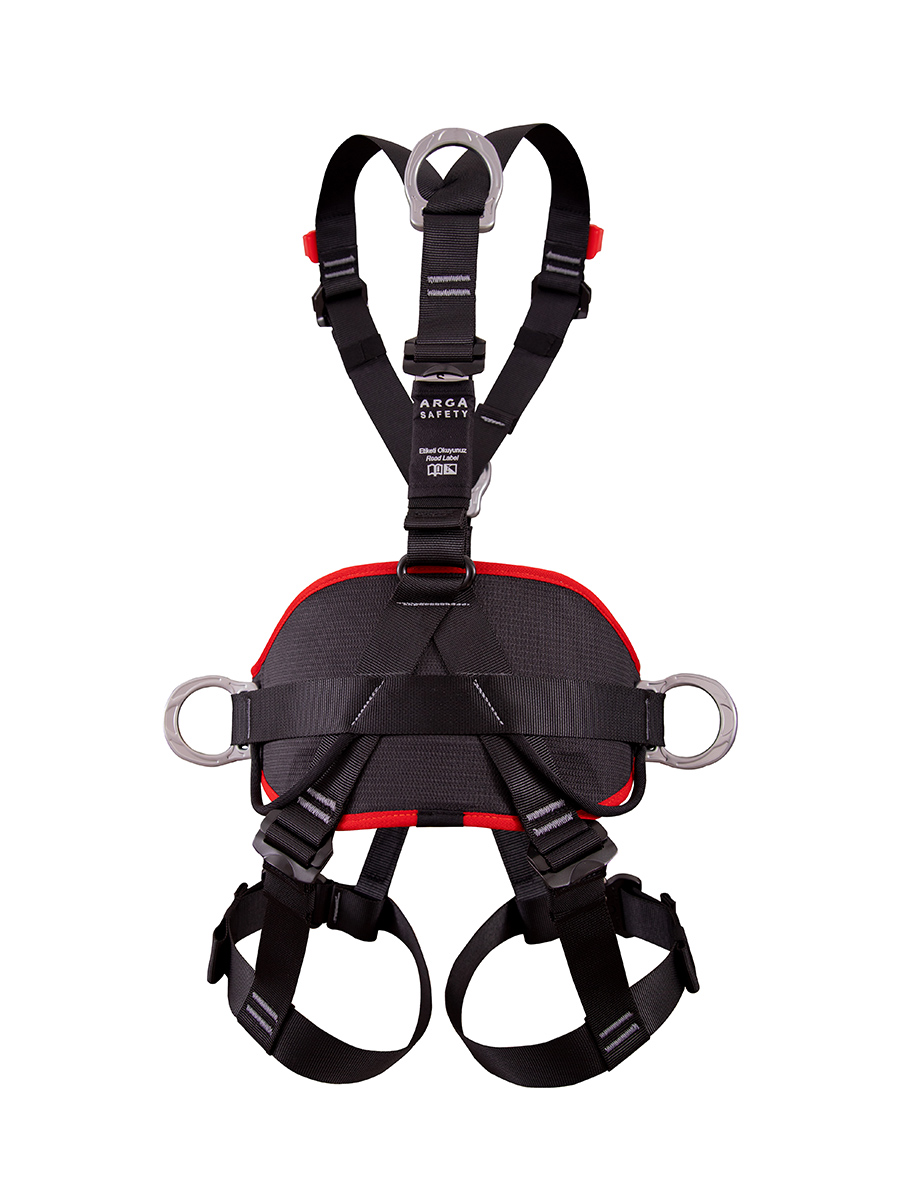

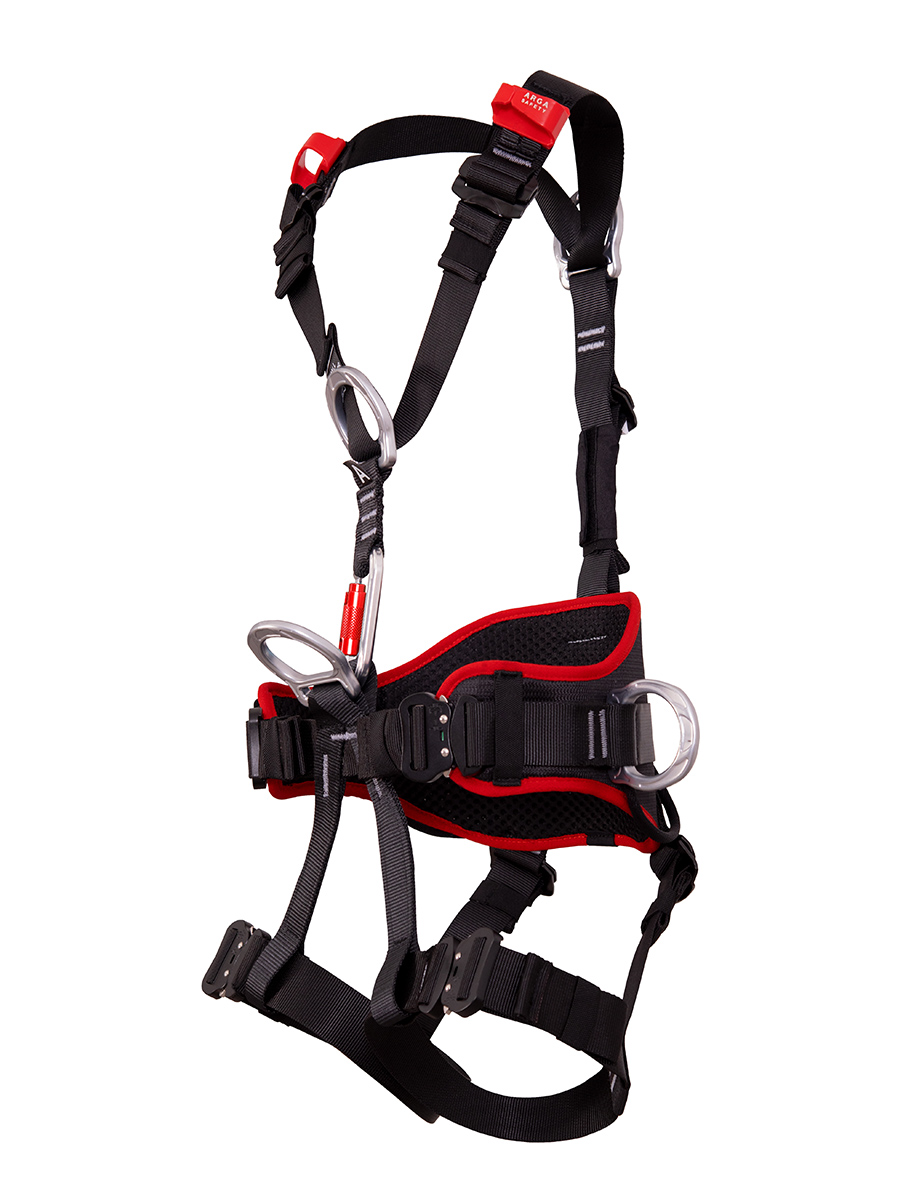

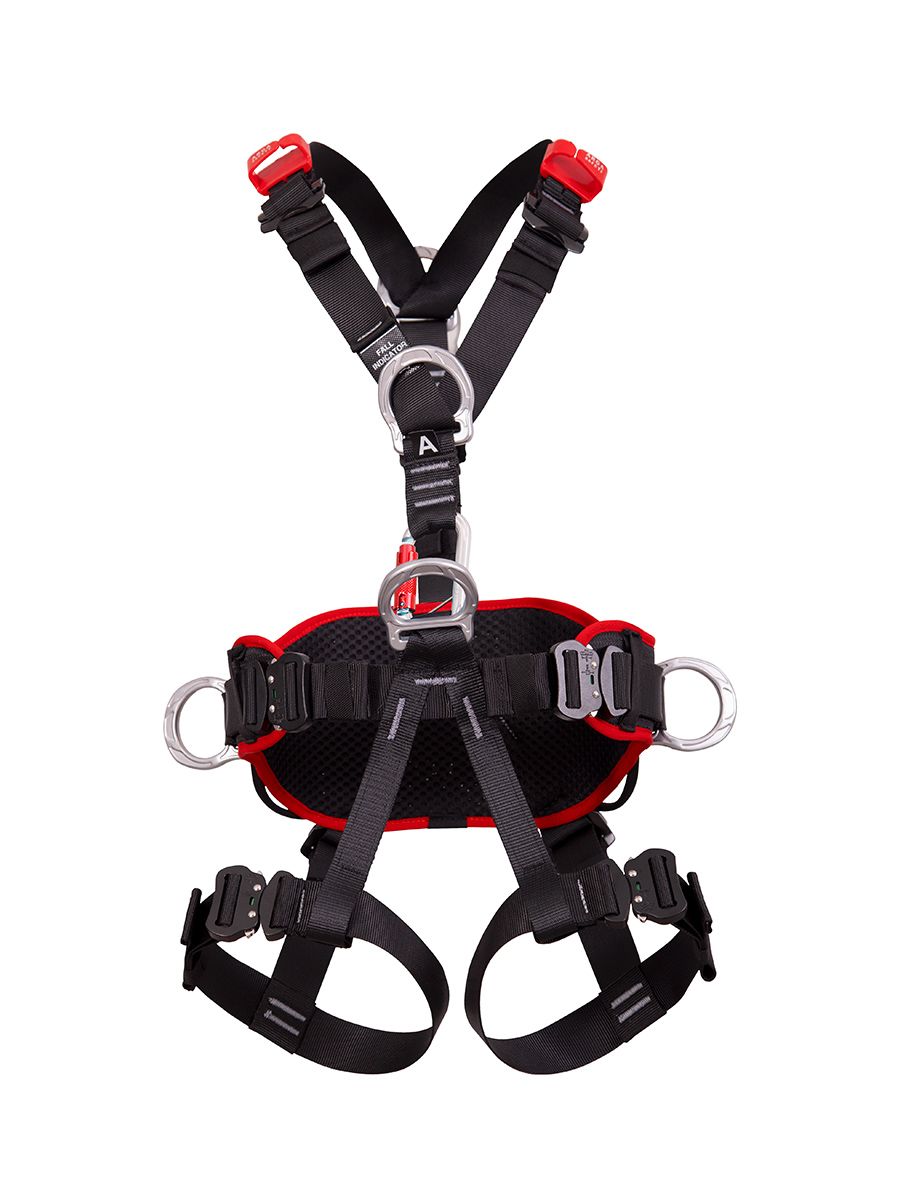

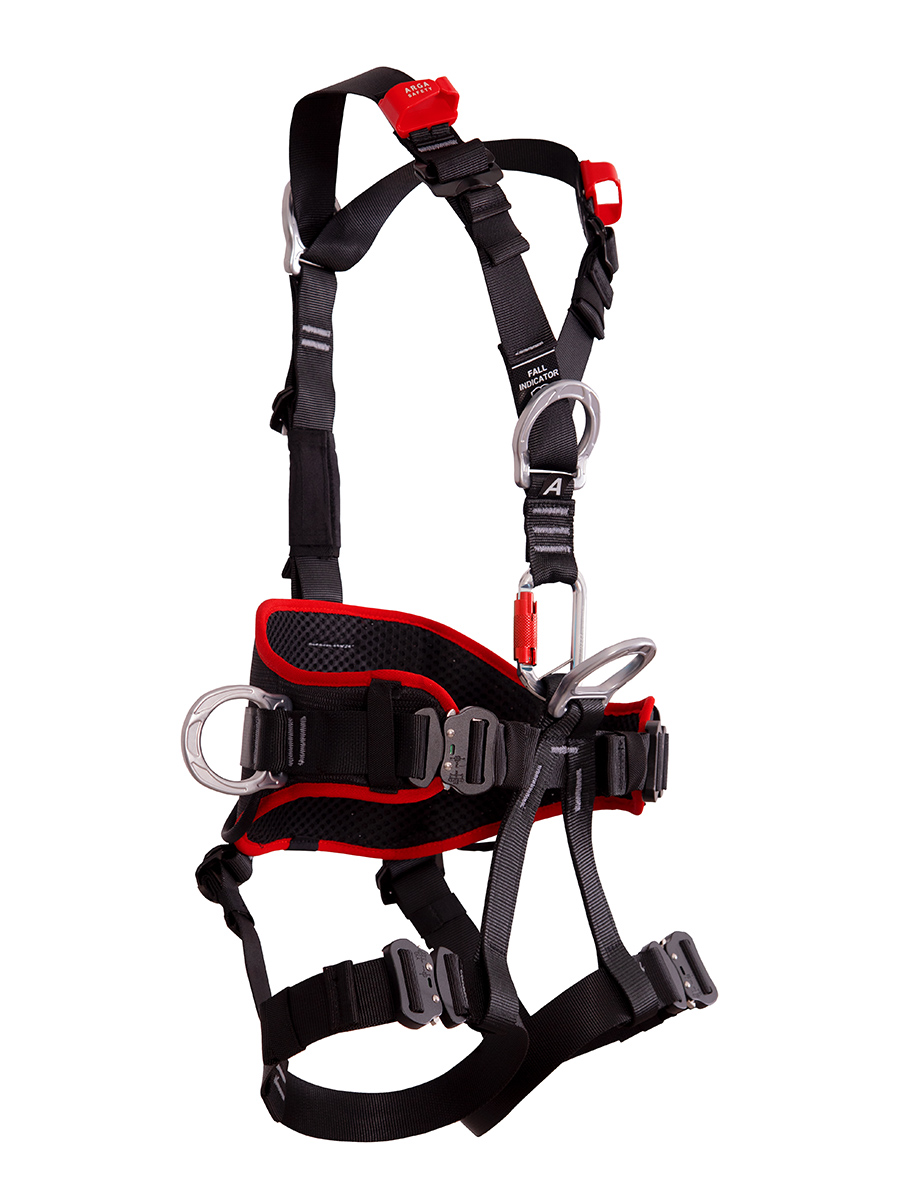

DRAGON FAST (H-5A) Fall Arrest, Positioning and Suspension Belt

DRAGON FAST (H-5A)

Fall Arrest and Positioning Belt (Suspension)

The DRAGON FAST fall arrest, work positioning and suspension seat belt is designed for high comfort in different working situations. The semi-rigid splint-backed lumbar pad provides excellent support while the lightweight and porous structure maximizes airflow. Thanks to the special design of the lanyard parks on the shoulder pads, it provides a perfect system for lanyard carabiners to be always accessible. EASY-TECH adjustment buckles allow the length of the columns between the waist belt and the leg pads on the back of the harness to be adjusted shorter when using the back D-ring. Developed for all working at height activities. The seat belt lumbar pad facilitates the transportation and use of many different working tools.

ALU TECH technology, aluminum alloy automatic buckles with indicator feature, which do not open under load. Located on the waist and front leg.

LANYARD PARK Thanks to its special design, the lanyard parks on the shoulder column provide an excellent system for keeping the lanyard carabiners always accessible, while preventing an additional impact force on the user’s body by opening itself under the force that occurs in the event of a fall.

• ALÜMİNYUM EĞİK D HALKA Kulanım kolaylığı sağlayan eğik / dışa bakan alüminyum alaşım D halkalar hafiftir. Sırt (1), göğüs (1), karın (1) ve bel yastığı üzerinde 2 adet olmak üzere toplamda 5 adet bulunur.

• DÜŞÜŞ İNDİKATÖRÜ sırtta ve göğüste 1 er adet bulunur. Emniyet kemerinin bir düşüşte kullanıldı ise düşüş indikatör dikişi sökülür ve ürünün tekrar kullanılamayacağını teyit eder.

ATEL PAD feature, Semi-rigid splint backed lumbar pad provides excellent support, lightweight and porous structure maximizes air flow, minimizes sweating.

REAR LEG ADJUSTMENT BUCKLES EASY-TECH adjustment buckles allow shorter adjustment of the length of the columns between the waist belt and the leg pads at the rear of the harness. The shorter adjustment allows the weight to be transferred to the leg pads in the event of a fall while wearing the back D-ring, so the user can hang more comfortably while waiting for rescue.

PROTECTIVE LABEL cover protects the seat belt label against weather and working conditions.

BONDED type U.V. and contrast sewing threads with high resistance to external environment and all seams are sewn on CNC type fully automatic machines.

Sizes: S, M/L, XL

Standart: EN 361:2002, EN 358:2018, EN 813:2008

Order Information

Sipariş Kodu

Beden

D Halkası

Yastıklar

Standart

Ağırlık

XS/S

M/L

XL

Sırt

Göğüs

Bel

Karın

Omuz

Bel

Bacak

EN361

EN358

EN813

(Gram/adet)

0015A10

2.193 g

0015A11

2.227 g

0015A12

2.256 g

DRAGON FAST (H-5A) User Manual : Click to Download.

DRAGON FAST Fall Arrest and Positioning Belt with Suspension (H-5A) – Product Technical Data Sheet : Click to Download.

DRAGON FAST Fall Arrest Harness and Positioning Harness (H-5A) – CE Declaration of Conformity : Click to Download.
