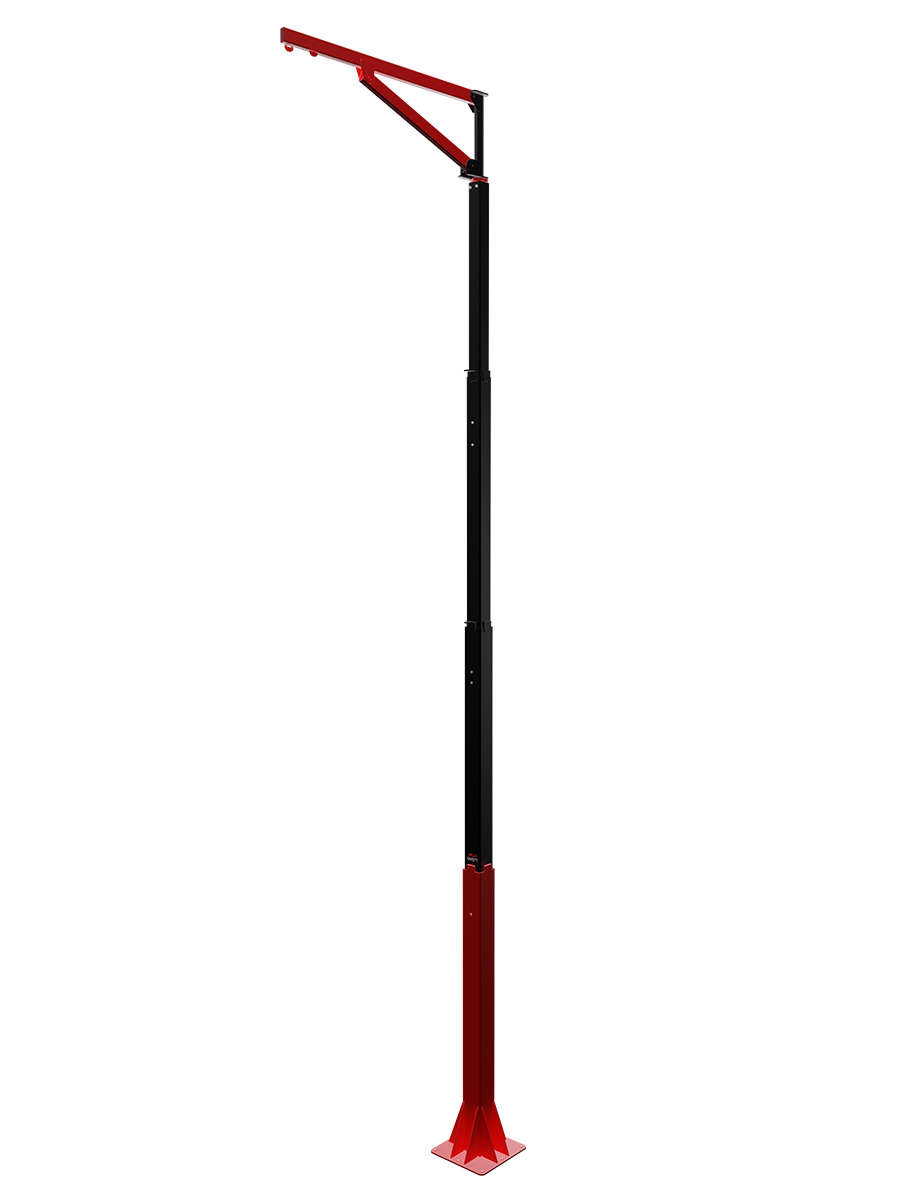

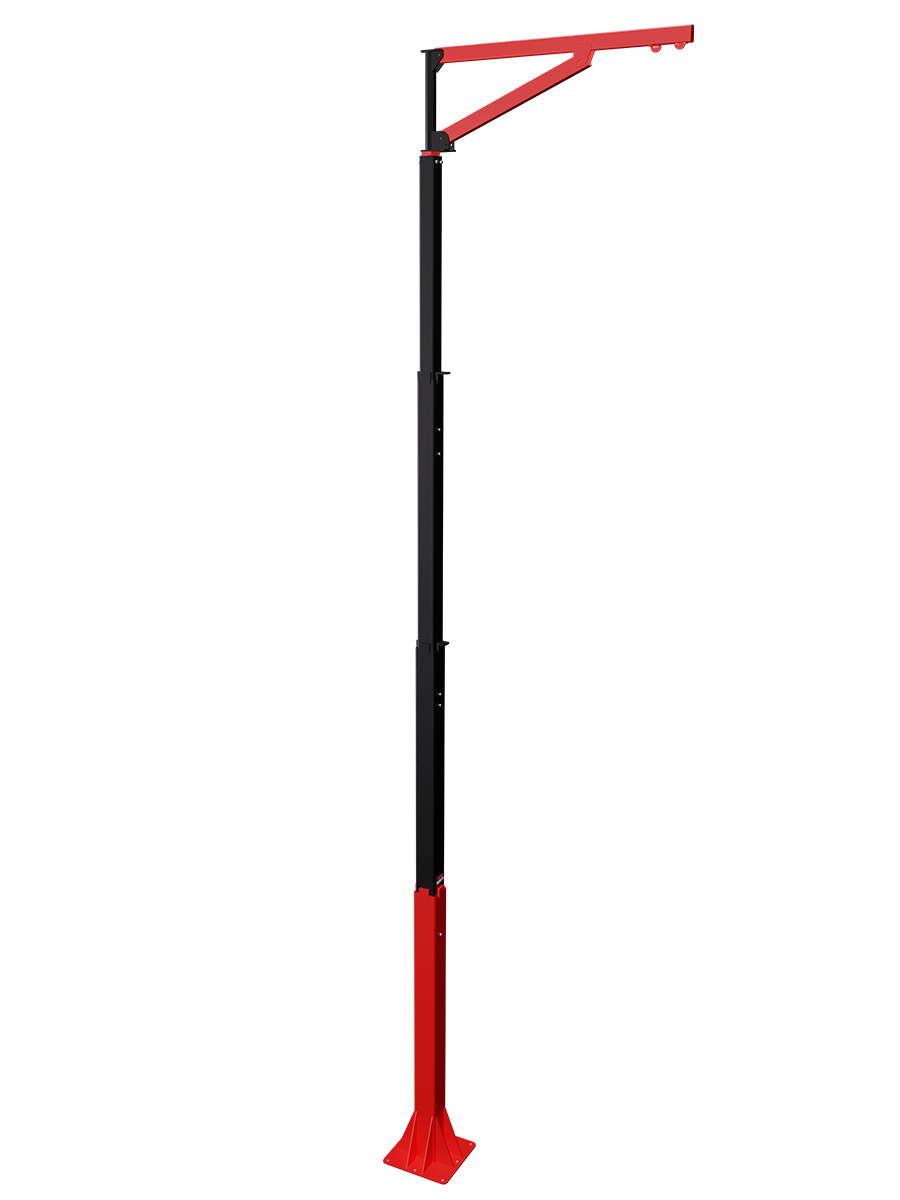

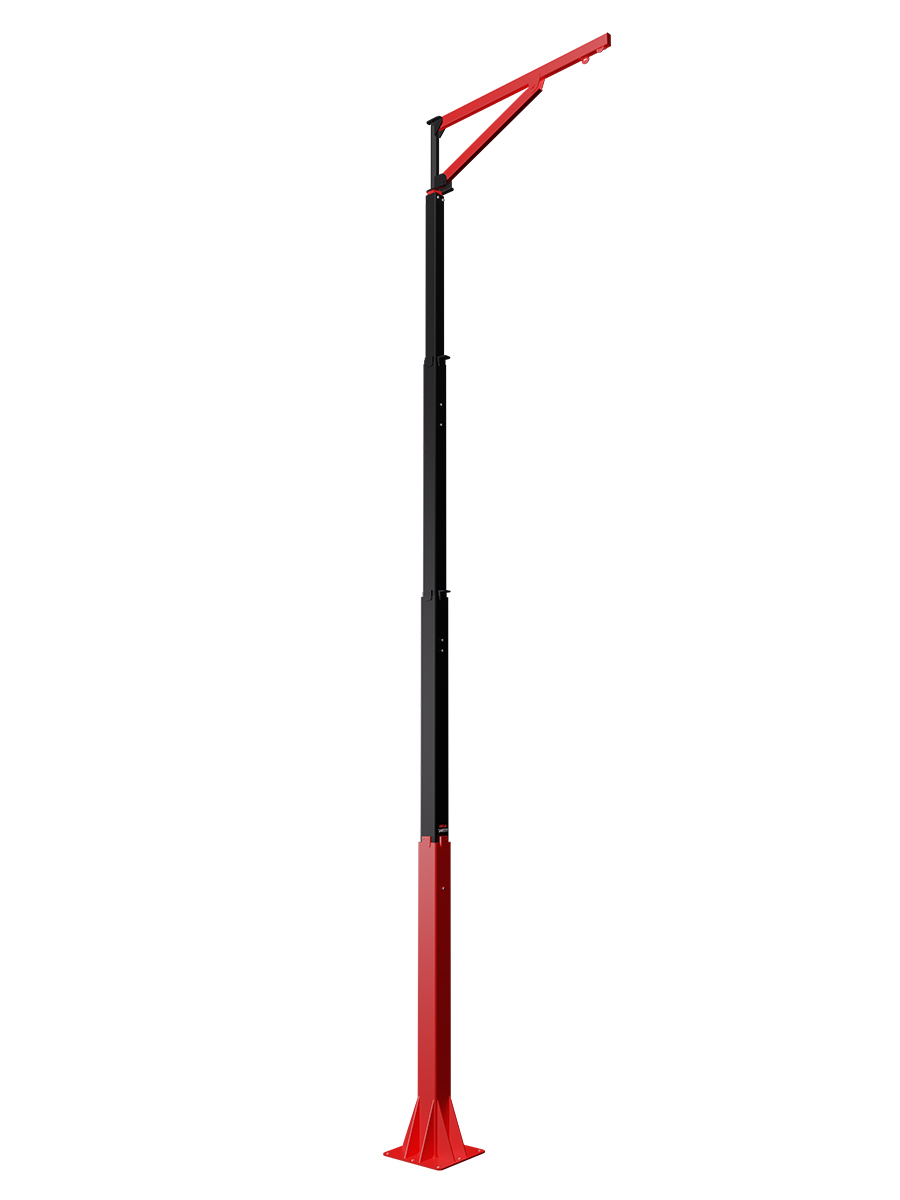

MIRACLE 360 Cantilever Anchor (Fixed to Concrete) (2 Persons)

MIRACLE 360

Cantilever Anchor (Fixed to Concrete) (2 Persons)

MIRACLE 360 Cantilever Anchor has a leg system that is fixed to the concrete and has been developed for working at height activities where there is a narrow or uncertain parking space for vehicle mounted work. MIRACLE 360 working height can be adjusted between 5-7 meters, it has a 360 degree working area and this can be restricted when desired. MIRACLE 360 can be used by 2 people at the same time.

CHEST FALL ARREST ICON-ARGA SAFETYBACK FALL ARREST ICON-ARGA SAFETY

– The MIRACLE 360 Cantilever Arm has a leg system that is fixed to the concrete and has been developed for working at heights where there is a narrow or uncertain parking space for vehicle mounted work.

360 degree rotatable arm feature allows it to be used in two vehicles parked side by side. Arm rotation angle can be adjusted according to the parking area.

– It has a telescopic adjustable body and can be adjusted up to 7 meters in height.

Anchor arm length is 1.5 meters.

– It has independent anchorage points suitable for use by 2 (two) users at the same time.

– It does not need any additional stability system, it is fixed to the concrete floor.

– It can be transported by forklift and is easy to install.

Profile surface is coated with sandblasting + cataphoresis + powder coating, suitable for outdoor conditions.

Order Information

Sipariş Kodu

Product Name

Foot

Standart

Ağırlık

Product Name

Product Description

Foot Type

Ramp

EN

795

CEN/TS 16415

EN

360

(Kg/

Quantity)

MC000010

MIRACLE 360

Cantilever Anchor (Fixed to Concrete) (2 Persons)

Concrete Fixed Foot

210 kg

MIRACLE 360 Cantilever Anchor (Fixed to Concrete) – User Manual : Click to Download.

MIRACLE 360 Cantilever Anchor (Fixed to Concrete) – Technical Data Sheet : Click to Download.

MIRACLE 360 Cantilever Anchor (Fixed to Concrete) – CE Declaration of Conformity : Click to Download.
